5 Axis Dual Table Robtic Soldering Machine With Smoke Purification Filter System

5 Axis Dual Table Robtic Soldering Machine With Smoke Purification Filter System

ব্র্যান্ড নাম:	HSTECH
মডেল নম্বর:	HS-S5331R
MOQ.:	1 পিসি
মূল্য:	negotiable
অর্থ প্রদানের শর্তাবলী:	টি/টি
সরবরাহের ক্ষমতা:	100 পিসি/মাস

বিস্তারিত তথ্য

পণ্যের বর্ণনা

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ISO

পণ্যের নাম:

স্বয়ংক্রিয় সোল্ডারিং রোবট

আর অক্ষ:

360°

মাত্রা (l*w*h):

716*585*800 মিমি

লোডিং পদ্ধতি:

পয়েন্ট সোল্ডারিং/ড্র্যাগ সোল্ডারিং

XYZ গতি:

সর্বোচ্চ 300 মিমি/সেকেন্ড

ওয়ারেন্টি:

1 বছর

প্যাকেজিং বিবরণ:

কাঠের

যোগানের ক্ষমতা:

100 পিসি/মাস

বিশেষভাবে তুলে ধরা:

5 axis robotic soldering machine

dual table soldering robot

smoke purification filter system

পণ্যের বর্ণনা

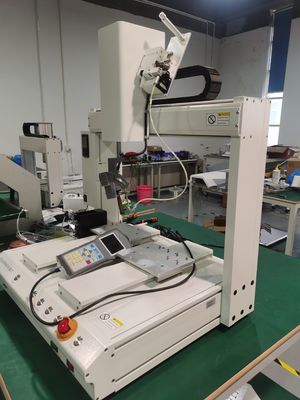

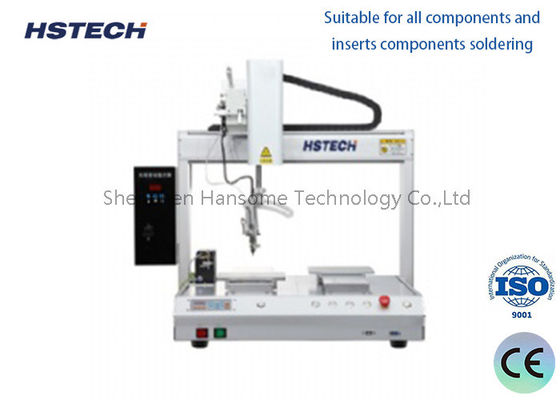

5 Axis Dual Table Robotic Soldering Machine With Smoke Purification Filter System

High Quality 5 Axis Dual Table Robotic Soldering Machine With Smoke Purification Filter System

Product Overview

This automated soldering machine is engineered for modern electronics manufacturing. Featuring 5-axis movement, stepper motor precision, and a teach pendant programming system, it delivers consistent, high-quality solder joints for through-hole, SMT, and specialty components.

Key Features

5-Axis Soldering: Full 5-axis capability enables flexible soldering angles, making it suitable for complex PCB assemblies and hard-to-reach joints.
Stepper Motor Control: Closed-loop stepper motor control ensures accurate, repeatable positioning with minimal deviation - critical for fine-pitch soldering.
Heating & Broken Tin Control: Integrated heating management and broken tin detection reduce cold solder joints and prevent wire jams, improving yield.
High-Quality Linear Guide: Precision linear guides guarantee smooth, flat, and low-friction movement, enhancing soldering consistency.
Flexible Soldering Modes: Supports both spot soldering and drag soldering, as well as custom soldering routines - perfect for mixed technology assemblies.
Rugged Machine Arm: Constructed from private-model aluminum alloy, offering a stable, non-bent, anti-rust structure for long-term industrial use.
Teach Pendant Programming: User-friendly teach pendant allows on-the-fly programming. The system can store up to 99 soldering programs, making changeovers fast and easy.
Smoke Purification Filter System: Built-in smoke filtration protects operators and the environment. It also extends soldering iron tip life and maintains soldering quality by reducing fume-related oxidation.

Technical Specifications

Model	HS-S5331R
X/Y1/Y2/Z Working Range	500300300*100mm
R Axis	360°
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeat Accuracy	±0.02mm
Operation Method	Auto
Programming	Manual programming (Teach Pendant)
Control System	Constant control system
Control	Control board
Program Storage	Can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File Storage Space	Hand held box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Weight	90kg
Dimension (LWH)	716585800mm
Power Supply	220V 50-60Hz
Temperature Control Range	0-550°C
Iron Tip Cleaning	Air cleaning/Pneumatic
External Interface	USB + RS232
Soldering Method	Point Soldering/Drag Soldering
Working Temp/Humidity	5-40°C/20-90% RH
