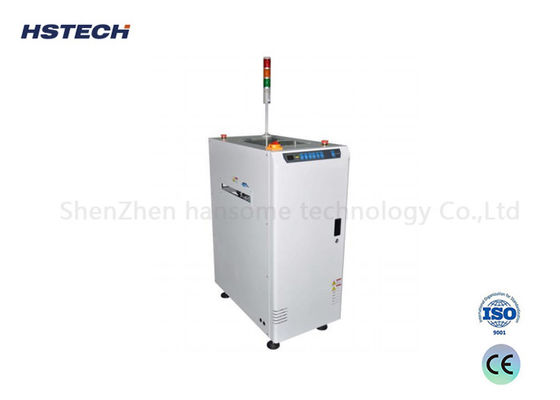

Smooth And Precise Rotation PCB Inverter PCB Flipper Machine With SMEMA Compatible Interface

Heavy Duty Smooth And Precise Rotation Style PCB Inverter PCB Flipper Machine For Electronic Manufacturing With SMEMA Compatible Function

Do you need to process double-sided PCBs but lack the space or budget for a second SMT line? Are you looking for a reliable way to flip circuit boards for bottom-side printing or component placement?

Our PCB Flipper (PCB Inverter) is the ultimate solution for efficient double-sided assembly. Designed to rotate PCBs by 180° automatically, this machine ensures smooth integration between your printer, mounter, and reflow oven, significantly reducing manual handling and preventing damage to sensitive components.

1.Enclosed design with built-in torque limiter ensure high level of safety.

2.Top safe cover can be opened for each access to hardware during Maintenance.

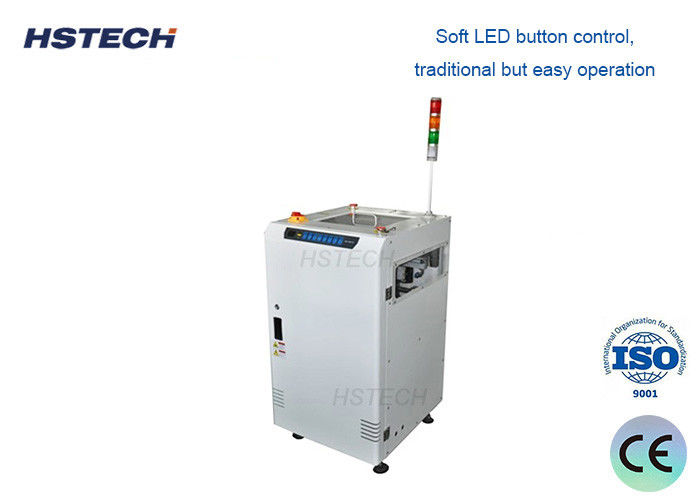

3.Use friendly control button,optional use touch screen.

4.Smooth and precise rotation.

5.By-pass model provided.

6.Minimize the transfer gap between conveyors.

7.PCB traffic flows can be customized.

8.Smooth and parallel width adjustment(lead screw).

9.SMEMA compatible.

1.SMT Production Lines: Used for 180° flipping of PCBs in double-sided assembly processes, matching with placement machines, reflow ovens and other equipment to realize automated production.

2. PCB Manufacturing Workshops: Suitable for flipping operations during PCB inspection, testing, coating and inkjet coding processes, ensuring comprehensive processing of both sides of the PCB.

3. Consumer Electronics Manufacturing: Used in the production of smartphones, tablets, wearable devices and other products, meeting the high-precision flipping needs of small and medium-sized PCBs.

4. Automotive Electronics Manufacturing: Adapt to the flipping needs of automotive PCB components, supporting the production of electric vehicles (EVs) and advanced driver-assistance systems (ADAS).

5. Industrial Control Equipment Manufacturing: Suitable for flipping large-size and heavy-weight industrial control PCBs, ensuring stable and precise operation in harsh industrial environments.

1.Complies with CE, ISO and other international certifications, meeting the strict safety and quality standards of European and American markets.

2.High-precision rotation and stable performance, adapting to the lean production needs of European and American electronic manufacturers, improving product qualification rate.

3.SMEMA compatible and easy to integrate with existing automated production lines, realizing seamless connection and improving production efficiency.

4.Energy-saving and environmental protection design, in line with the environmental protection requirements of European and American countries, reducing energy consumption.

5.Cost-effective, with high performance and reasonable price, adapting to the cost control needs of Southeast Asian manufacturing enterprises.

6.Simple operation and easy maintenance, reducing the training cost of operators and adapting to the needs of the Southeast Asian labor market.

7.Compatible with global voltage (110V/220V), no need to modify the power supply, which is convenient for use in various Southeast Asian countries.

8.Strong versatility and customizable design, adapting to the diversified production needs of small and medium-sized enterprises in Southeast Asia.

Upgrade your SMT line with our reliable PCB Flipper today! We offer worldwide shipping to international customers.
