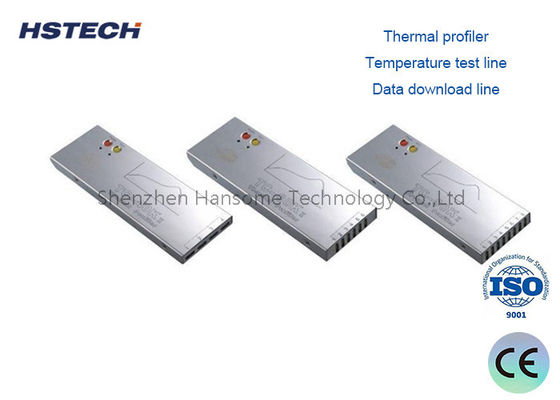

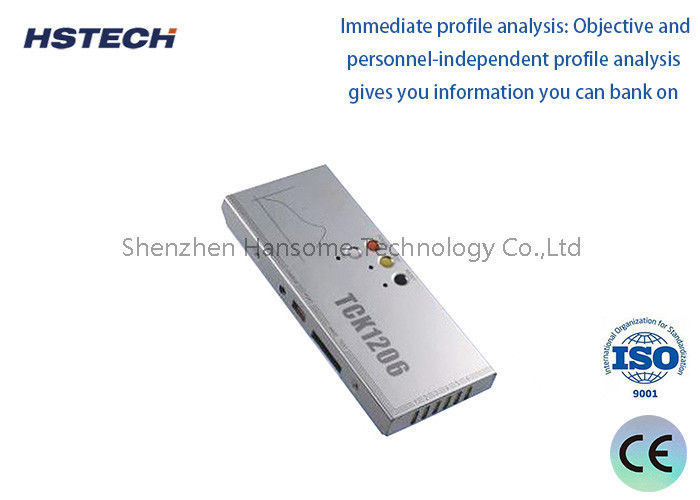

TCK Thermal Profiler 0.1℃ Resolution 80000 Data Points RF Transceiver

The TCK Series Thermal Profiler is a state-of-the-art temperature tracking instrument designed to deliver accurate and reliable thermal profiling for a wide range of industrial applications. Engineered for professionals who demand precision, this profiler seamlessly records and analyzes temperature curves, providing critical insights for process optimization. Whether you are managing SMT reflow soldering, wave soldering, or various curing and heat treatment processes, the TCK Series offers a robust, wireless-capable solution to ensure your manufacturing meets the highest quality standards.

1.  High-quality Core Components: The product is equipped with PLC core components, ensuring its stability and reliability during use. These components significantly contribute to the efficient performance of the reflow oven profiler.
2.  New & Unopened Condition: The original slim KIC 2000 reflow oven profiler is in perfect new condition, ensuring the buyer receives a high-quality and pristine product. This condition guarantees optimal performance and longevity.
3.  Showroom Availability: The slim KIC 2000 reflow oven profiler is available in select locations such as the United States, France, and Germany. This makes it easily accessible to potential buyers in these regions, allowing for convenient and hassle-free inspections.
4.  Rigorous Testing and Certification: The slim KIC 2000 reflow oven profiler undergoes a comprehensive machinery test report to ensure its performance meets international and industry-specific standards. This documentation guarantees that the product is dependable and can effectively handle a wide range of tasks, providing users with the assurance they require.

1.  Thermocouple: K-type thermocouple
2.  Sampling interval:0.05sec---600sec Set with software
3.  Record data:80000 point/channel, Can record 20 sets profile
4.  Resolution: 0.1℃
5.  Temperature measuring range: 0—1000℃
6.  Temperature measuring accuracy: ±1.0℃
7.  Total power: ≤120mW
8.  Operating voltage:3.6VDC, rechargeable battery
9.  Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm
10.   Insulation box:245(L)×100(W)×30(H)mm
11.   Start Mode: Manual, specified time or specified temperature
12.   Record mode: Monitor/Record
13.   Connection mode:USB/RF
14.   Software version:Profilermanager 2.0

• Peak Temp,Times of overtop the Temp
• Times of between Temp(Reflow)
• Slope of between Temp(Reflow)
• Slope of between Times(Wave)

The TCK Series Thermal Profiler is a versatile tool essential for numerous industries:

• Electronics Manufacturing: SMT/DIP processing, reflow soldering, wave soldering.
• Coating & Curing: Automotive painting, powder coating, UV curing, enamel sintering, non-stick coating, Dacromet & Geomet coating.
• Glass & Solar: Glass tempering, solar panel lamination and curing.
• Metal Treatment: Aluminum alloy heat treatment, glass annealing.
• Other Industries: Food processing, metallurgy, environmental testing, and plastic resin curing.

• Industry-Leading Performance: Capable of continuously testing up to 20 groups of temperature curves, providing a comprehensive view of your process.
• Comprehensive Software Suite: ProfileManager V2.0 supports both English and Chinese, featuring 22+ powerful analysis functions including slope calculation, time-above-temperature analysis, and Excel data export.
• Complete Accessory Kit: Each unit comes fully equipped with a carrying case, K-type thermocouples, high-temperature tape, solder wire, insulated gloves, and all necessary tools for immediate deployment.
• Reliable Support: Backed by a 2-year warranty and lifetime maintenance commitment, ensuring your investment is protected.
• Green Manufacturing Ready: Specifically designed to support lead-free soldering processes and stringent environmental standards.

Optimize your production process and guarantee product quality with the TCK Series Thermal Profiler. Our team is ready to provide you with a tailored solution for your specific thermal profiling needs. Contact us today for pricing, technical consultations, or to request a product demonstration. Experience the difference that accurate, reliable, and intelligent temperature tracking can make for your business.
